DNS

The Domain Name System is a distributed database. This structure allows local control of the segments of the overall database, yet data in each segment is available across the entire network through a client/server scheme. Robustness and adequate performance are achieved through replication and caching.

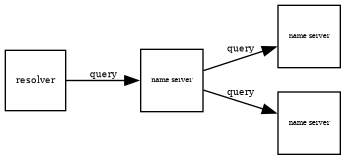

Programs called nameservers constitute the server half of DNS's client/server mechanism. Nameservers contain information about some segments of the database and make that information available to clients, called resolvers. Resolvers are often just library routines that create queries and send them across a network to a nameserver. (Liu and Albitz 2006, chap. 1 p.4)

  > dig +noall +answer wikipedia.org
  wikipedia.org.                276     IN      A       195.200.68.224
  # or
  > dig +noall +answer wikipedia.org AAAA
  wikipedia.org.                185     IN      AAAA    2a02:ec80:700:ed1a::1
Human-Friendly Name Machine-Friendly Name
www.wikipedia.com 195.200.68.224
dns.cloudfare.com 1.1.1.1

The Domain Namespace

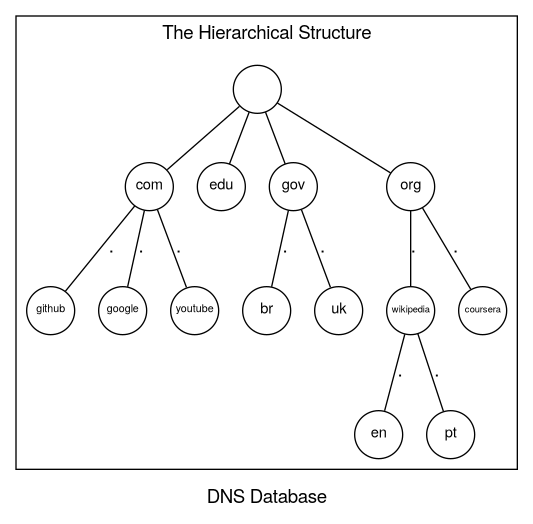

Each node in the tree has a text label (without dots) that can be up to 63 characters long. A null (zero-length) label is reserved for the root. The full domain name of any node in the tree is the sequence of labels on the path from that node to the root. Domain names are always read from the node toward the root (“up” the tree), with dots separating the names in the path.

(Liu and Albitz 2006, 12)


Domains and Subdomains

A domain may have several subtrees of its own, called subdomains.

A simple way of determining if a domain is a subdomain of another domain is to compare their domain names. A subdomain's domain name ends with the domain name of its parent domain.

(Liu and Albitz 2006, 16)

  • A domain is a set of related nodes.
  • Every node in the DNS tree has a label.
  • The root label is empty.
  • Labels are separated by a dot (.).
  • Items are sorted from most to least specific (i.e. en.wikipedia.org -> wikipedia.org -> org).
Node   Subdomain   Domain   TLD Root
www . abc . xyz . com
www . en . wikipedia . org

where TLD is an abbreviation for "Top Level Domain".

Resource Records

The data associated with domain names is contained in resource records, or RRs. Records are divided into classes, each of which pertains to a type of network or software.

(Liu and Albitz 2006, 16)

Delegation

In DNS, each domain can be broken into a number of subdomains, and responsibility for those subdomains can be doled out to different organizations. For example, an organization called EDUCAUSE manages the edu (educational) domain but delegates responsibility for the berkeley.edu subdomain to U.C. Berkeley.

(Liu and Albitz 2006, 5)

  • Delegation allows an organization to assign control of a subdomain to another organization.
  • Zones are the administrative unit in DNS.

We can see all the delegation zones when running dig with the +trace option.

  > dig +trace guix.gnu.org

  ; <<>> DiG 9.20.18 <<>> +trace guix.gnu.org
  ;; global options: +cmd
  .                     86400   IN      NS      c.root-servers.net.
  .                     86400   IN      NS      d.root-servers.net.
  .                     86400   IN      NS      g.root-servers.net.
  .                     86400   IN      NS      j.root-servers.net.
  .                     86400   IN      NS      i.root-servers.net.
  .                     86400   IN      NS      k.root-servers.net.
  .                     86400   IN      NS      m.root-servers.net.
  .                     86400   IN      NS      e.root-servers.net.
  .                     86400   IN      NS      f.root-servers.net.
  .                     86400   IN      NS      h.root-servers.net.
  .                     86400   IN      NS      l.root-servers.net.
  .                     86400   IN      NS      b.root-servers.net.
  .                     86400   IN      NS      a.root-servers.net.
  .                     86400   IN      RRSIG   NS 8 0 518400 20260330170000 20260317160000 21831 . UvAJnsA3HINQiVD0um+pXMe4GgX0HA1xPbdQhxImQ2bt9HDuiv9MGHnb W1t9c+hyZ8T/kSbJCjvQljr2kdnEAx2EnZD/ipT0tIxvVIV0fLcdH2w9 q9UCUV1JhThdrDlNzFzxSnVA+6WN/UwMWO4tXiTZIyJz2ORDwMzhI6fR 3ve2D6xvikAhBdlsMs0LimbACtdxdPHSBU0JkOWOCdwH0N3hUdyKjQVw Ce6uKI4bbXp3MbFqgN/II+01Cx4IsLOSQzwTjEHHgHnJDNdFAQ9LYD9s uVval+ihCkpOlfjSNrEGPK3Db+YM7reCmK61V0do8KFyi/YfyjA9mXmJ v6pUnA==
  ;; Received 1097 bytes from 192.168.2.1#53(192.168.2.1) in 42 ms

  org.                  172800  IN      NS      b0.org.afilias-nst.org.
  org.                  172800  IN      NS      a0.org.afilias-nst.info.
  org.                  172800  IN      NS      a2.org.afilias-nst.info.
  org.                  172800  IN      NS      d0.org.afilias-nst.org.
  org.                  172800  IN      NS      c0.org.afilias-nst.info.
  org.                  172800  IN      NS      b2.org.afilias-nst.org.
  org.                  86400   IN      DS      26974 8 2 4FEDE294C53F438A158C41D39489CD78A86BEB0D8A0AEAFF14745C0D 16E1DE32
  org.                  86400   IN      RRSIG   DS 8 1 86400 20260330170000 20260317160000 21831 . qWBRze3LuB6CEKzX/hrdbFeveEBjZqWPe63z/xLmDE325xqPkAAj/IvI DQrCxmnIPeFHTFDFWq17iHPCo42bO715tg2DuwEg/QG58a1k1ZQRmMov FgXdmHQP/vPixFG+3KkWKT1P3gNTZpvKypla0AgT57IANq6y+AxUjcMO UuGEyp9PGrp+zdpnhlDEbK1juzU4zBwQVUD5+b+cpr7PAt3grBLgkKbp VOV9yp/8Y01MruDnVQ+ufKQ+TIa61eGjQ+RusJokiiCQ/ZQNjtvcp09l /LIFSQFjgK8tMX75Bced1xxbxRo5nQuRnL9qk42wyMUvKW9tPo0P/Bp0 XHD+sw==
  ;; Received 806 bytes from 192.36.148.17#53(i.root-servers.net) in 31 ms

  gnu.org.              3600    IN      NS      ns1.gnu.org.
  gnu.org.              3600    IN      NS      ns2.gnu.org.
  gnu.org.              3600    IN      NS      ns4.gnu.org.
  gdtpongmpok61u9lvnipqor8lra9l4t0.org. 3600 IN NSEC3 1 1 0 332539EE7F95C32A GDTREA8KMJ2RNEQEN4M2OGJ26KFSUKJ7 NS SOA RRSIG DNSKEY NSEC3PARAM
  gdtpongmpok61u9lvnipqor8lra9l4t0.org. 3600 IN RRSIG NSEC3 8 2 3600 20260407195629 20260317185629 29805 org. FLEM6HTzpn+NuTpE245V/ebV6V7GSOTITM9mNir/kFsA+pbbcPvPIf9R oz15PFRQcZljD7TrXU86sL4ufSFq4neYbWuXqB/9RHUjDV5yBb01wzfy C7oJdAJuIgWqTkMXQXRqOAjq4imMGQrzbqlEX6f745UOG/YfiRVOUrlq atU=
  75u43m27modtpregu0d0merldse1krqf.org. 3600 IN NSEC3 1 1 0 332539EE7F95C32A 75U4T5QDUA8DUFCDA7PB5HRA87F07G6N NS DS RRSIG
  75u43m27modtpregu0d0merldse1krqf.org. 3600 IN RRSIG NSEC3 8 2 3600 20260407152334 20260317142334 29805 org. a5+0aYDeY3x+YSdpOC2WzEQRByhI82fAPZSnLW2VQIaJlDrOn6HOowqj IPeJ3wutqmIlGFmmyVKcvIZMVlXo4ghFJxjZcxS05MReJRFQOT6ZB0qJ tA3jmhWdjW0u0zzuoA2/SUyhV978gK+bT9fBGJoArJgWa057IOlXnir3 j0A=
  ;; Received 728 bytes from 199.19.56.1#53(a0.org.afilias-nst.info) in 327 ms

  ;; UDP setup with 2607:5300:60:4a62::1#53(2607:5300:60:4a62::1) for guix.gnu.org failed: network unreachable.
  guix.gnu.org.         3600    IN      A       46.224.9.33
  guix.gnu.org.         3600    IN      NS      ns1.gnu.org.
  guix.gnu.org.         3600    IN      NS      ns3.gnu.org.
  guix.gnu.org.         3600    IN      NS      ns2.gnu.org.
  guix.gnu.org.         3600    IN      NS      ns4.gnu.org.
  ;; Received 163 bytes from 188.165.235.157#53(ns4.gnu.org) in 249 ms

Root Servers

The root zone is overseen by ICANN (Internet Corporation for Assigned Names and Numbers) and its name servers are hosted by a total of 12 organizations, this can be verified on the list published by IANA (a subsidiary of ICANN).

  > dig +short ns .
  g.root-servers.net.
  e.root-servers.net.
  l.root-servers.net.
  m.root-servers.net.
  a.root-servers.net.
  j.root-servers.net.
  c.root-servers.net.
  h.root-servers.net.
  d.root-servers.net.
  i.root-servers.net.
  k.root-servers.net.
  b.root-servers.net.
  f.root-servers.net.

Name Servers and Resolvers


There are two types of DNS servers:

Authoritative
Answer queries for specific zones they have authority over.
Recursive
Perform DNS lookups for users, retrieving and collecting DNS data from authoritative servers by using recursive queries. Accepting a recursive query forces a given name server to follow all the links until a match occurs or no more referrals are found.
Zone Name Server
wikipedia.org
wikipedia.org
wikipedia.org
org
  dig +noall +answer +trace en.wikipedia.org

Caching

  • TTLs can range from seconds to hours to days.
  • The administrator of a zones are the ones decidings the values for the TTLs.

Zone Transfer

DNS servers stay in sync using a Leader/Follower (Primary/Secondary) architecture. Instead of manual updates, they use a process called Zone Transfer to ensure every server has the same information.

The SOA Record

Before any data moves, the secondary server checks the Start of Authority (SOA) record. This record acts as the "version control" and configuration manual for the zone.

Serial Number
If the secondary server sees a higher number on the primary, it knows it's time to update.
Refresh/Retry/Expire
Timers that tell the follower how often to check for updates, how long to wait if a connection fails, and when to give up and stop serving old data.
Admin Contact
An email for the zone administrator.

When a follower realizes its data is outdated, it initiates one of two types of transfers over TCP/IP:

  • AXFR (Full Zone Transfer): The follower requests everything. The primary sends the entire database for that zone.
  • IXFR (Incremental Zone Transfer): A more efficient "patch" update. The follower only requests changes that happened since a specific serial number.
  • DNS Notify: To prevent long delays, the primary can proactively "ping" followers to tell them an update is ready, rather than waiting for the next refresh cycle.

While zone transfers are the "classic" way to sync, the landscape has changed:

  • Security Risks: If a server allows anyone to perform an AXFR, hackers can download a complete map of every sub-domain and IP address in a network. Therefore, transfers should be restricted to trusted IPs.
  • Cloud Providers: Many modern services ignore zone transfers entirely.

Top-Level Domains

Types

Name Description Length Quantity (Approximated)
ccTLD Managed by a country 2 characters 250
gTLD Generic, managed by commercial or non-profit organizations 3+ characters 1250

Records

Record Name Synonims Description
A   Maps a domain name to an IPV4 address
AAAA Quad A Maps a domain name to an IPV6 address
NS   Maps a domain name to an authoritative DNS server
