Peer-to-Peer Protocols

Peer-to-peer processes at a given layer cooperate to provide services to the layer above and rely on the services of the layer below.

Key Concepts

  • A layer-(n+1) peer process invokes the layer-n protocol.
  • It passes Service Data Units (SDUs) downward for transfer.
  • Layer-n peers exchange Protocol Data Units (PDUs) horizontally to perform the transfer.
  • Each layer provides a service interface upward and uses the service interface below.

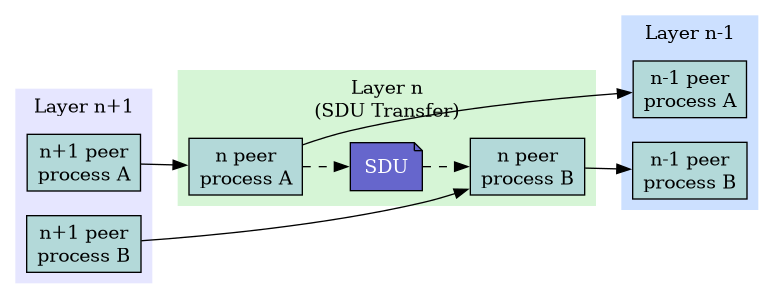

SDU Flow

  • Layer-(n+1) passes SDUs down to layer-n.
  • Layer-n peers interact.

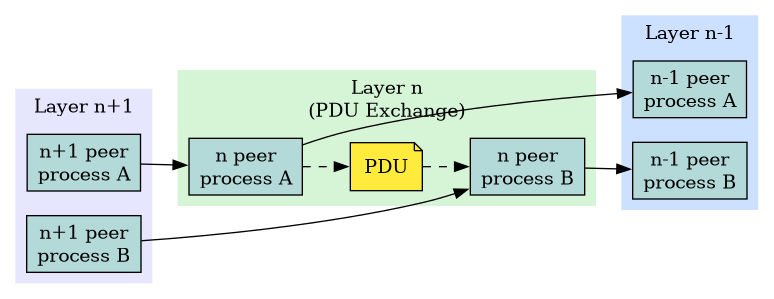

PDU Flow

  • Layer-n peers exchange PDUs horizontally.

Network Service Models and Features

Service Models

Service Model
Specifies the information transfer service that layer-n provides to layer-(n+1).
Key Distinction
The service is either:
  • Connection-oriented
  • Connectionless
Quality-of-Service (QoS)
Requirements specify a level of performance expected during information transfer.

A service model can include the following features:

Arbitrary message size or structure
Services restrict the size and structure of data (e.g., single bit, block of bytes, byte stream).
  • Voice Mail: 1 long message.
  • Voice Call: Sequence of 1-byte messages (a byte stream).
Reliability
Ensures transmission is reliable (no loss or corruption).
  • Provided by ARQ protocols which combine error detection, retransmission, and sequence numbering.
  • Examples: TCP and HDLC.
Sequencing
Ensures messages are delivered in the correct order, without duplication.
Timing
Critical for temporal data (voice, video).
  • Network transfer introduces delay and jitter.
  • Timing Recovery protocols use timestamps and sequence numbering to control delay and jitter.
  • Examples: RTP (Real-time Transport Protocol).
Flow control
Prevents buffer overflows at the destination.
  • Uses backpressure mechanisms to control transfer based on destination buffer availability.
  • Examples: TCP and HDLC.
Multiplexing
Enables multiple layer-(n+1) users to share a single layer-n service.
  • Requires a multiplexing tag to identify specific users at the destination.
  • Example: IP.
(no term)
Privacy, integrity, and authentication

End-to-End vs. Hop-by-Hop

A service feature can be implemented:

End-to-End
Across the entire path from the source to the final destination.
Hop-by-Hop
Across every intermediate link/node (hop) in the network.
